Gold Ore Flotation Machine
Basic Info
| Model NO. | SF1.2 |
| Energy Saving | Energy Saving |
| Warranty | 1 Year |
| Color | Red |
| Customized | Customized |
| Condition | New |
| Transport Package | Bare Machine in Container |
| Trademark | HENGXING |
| Origin | China |
Product Description
Gold Ore Floatation Machine
XJK/SF series Gold Machine Application:
Gold machine is applicable for the separation of nonferrous metal and ferrous metal. It is also used for separating nonmetal, such as fluorite and talcum.
XJK/SF series Gold Machine Working Principle:
Driven through V- belt transmission, which brings centrifugal effect to form the negative pressure. On the one hand, the flotation machine inhales sufficient air to mix with ore slurry; on the other hand it stirs ore slurry and mix with medication to form the mineralized froth. By adjusting the height of flashboard to control the liquid level and make the useful froth scraped by loam board.
XJK/SF series Gold Machine Working Principle:
To check the bolts before starting the machine and to use hand instead of impellers to prevent the sediment from adding the burden of electromotor. To adjust the height of strobe carefully to keep the stabilization of liquid level and scrape the mineralized froth to the launder. The impellers and stators should have a distance and should be changed when they are worn. The bearing in the pump should be maintained every three months.
Technical Parameters of XJK/SF Series Gold Machine:
Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | |
Trough capacity(m3) | 0.37 | 0.7 | 1.2 | 2.8 | 4 | |
Blade diameter(mm) | 300 | 350 | 450 | 550 | 650 | |
Production capacity(m3/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | |
Blade rotation speed(m3/min) | 352 | 400 | 312 | 268 | 238 | |
Motor | Model | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y180L-6 |
Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | ||
Power(kw) | 1.5 | 3 | 5.5 | 11 | 15 | |
1.1 | 1.1 | 1.1 | 1.1 | 1.5 | ||
Dimensions(mm) | 700*700 | 900*820 | 1100*1100 | 1700*1600 | 1850*2050 | |
Single trough weight(kg) | 468 | 600 | 1373 | 2338 | 2660 | |

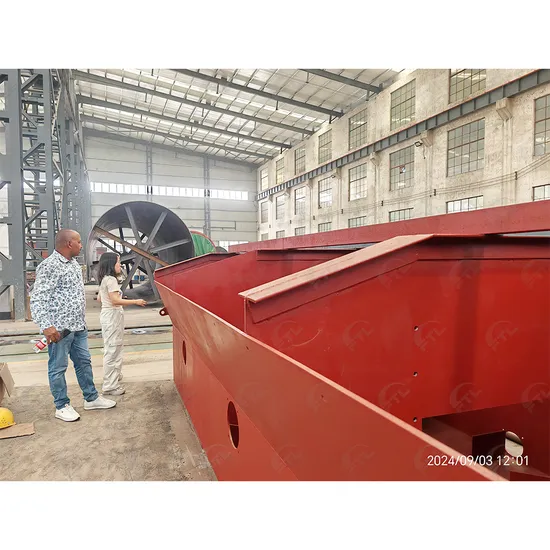

Flotation machine from our factory :
