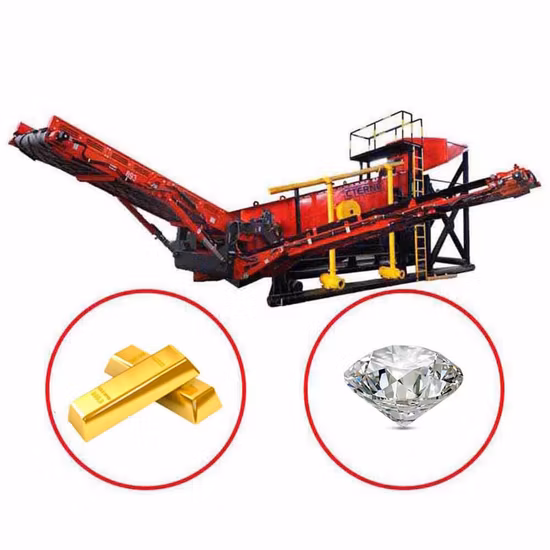

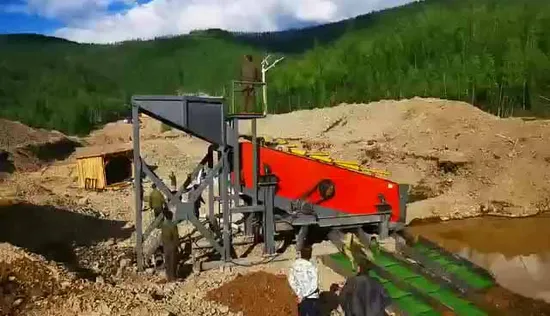

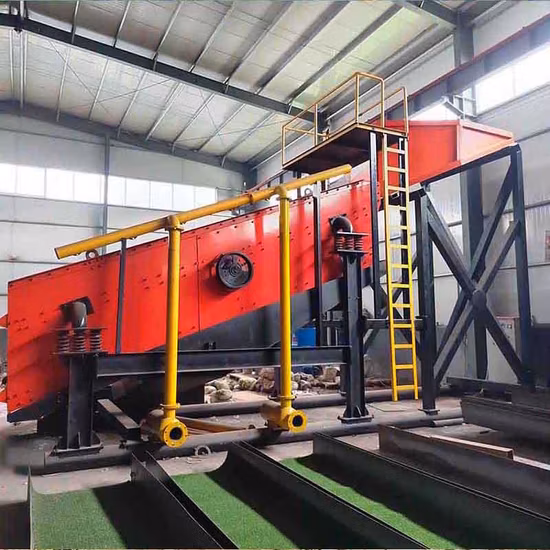

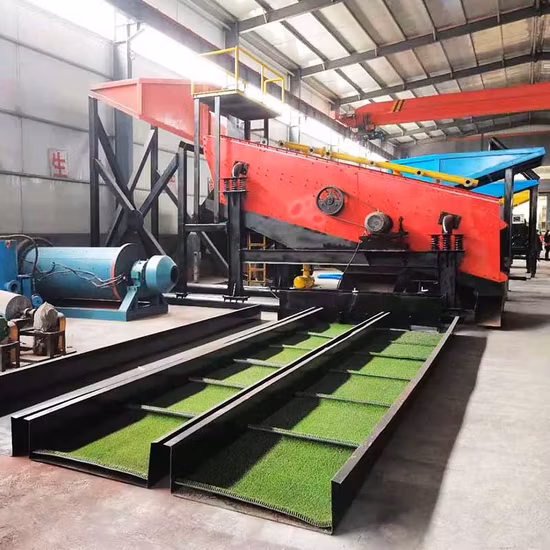

Mining Vibration Sieve Circular Vibrating Screen for Mining Industry

Basic Info

Model NO.	Various
Shaft Number	Double
Running Track	Circular Vibrating Screen
Supporting Device	Plate Spring
Warranty	1 Year
Customized	Customized
Condition	New
Certificate	ISO9001,ISO14000
Application	Cement\Magnesium\Lime\Ore Dressing\Sand Production
Technical Parameters	See Technical Table
Advantage	Professional Manufacture
Model Number	Reference to The Form
Experience	More Than 50 Years
Installation	Under Our Engineer′s Guide
After Sale Service	for The Whole Using Life
Testing	We Offer
Transport Package	Standard Export Packing
Specification	ISO9001, ISO14000, CE
Trademark	ZK
Origin	Zhengzhou, China
HS Code	8417
Production Capacity	Reference to The Form

Product Description

Mining Vibration Sieve Circular Vibrating Screen for Mining Industry
Vibrating screen:
The vibrating screen is machinery and equipment of vibration screening, which is suitable for damp fine grade of difficult materials with dry vibration screening, and is also equipment to process difficult materials of the domestic. Vibrating screen has the process characteristics of large amplitude, large vibration intensity, low frequency and elastic screen surface. In the working process, it maintains the largest rate of hole, which is of high efficiency, large capacity, convenient replacement of sieve plate, and reduces the cost.Our company mainly produces three kinds of vibrating screen as follows:

YA Series Circular Vibrating Screen:
YA Drum Vibrating Screen is primarily applied coal, Metallurgical, power generation, building material, water conservancy 'light and chemical industries and other industries and a highly efficient screening machine to classify coal, ore, coke and other bulk materials.



Working Philosophy and Structural Property
The screen is operated by electric motor to drive vibrator with eccentric mass via delta belt, allowing screen box to vibrate, with the motional orbit of the screen box being circular. The screen is composed of screen box, vibrator, spring, damping, supporting underframe and others, as shown in Fig. 1. The screen box uses the advanced ring groove rivet for connection and si of frame structure.The vibrator adopts eccentric shaft and eccentric block and the spring damping device sues steel spiral spring.YK Series Circular Vibrating Screen:YK Series Circular Vibrating Screen adopts German technology, and is specially designed to sieve different sizes of aggregate. It is also applied in coal dressing, ore dressing, building material, electricity and chemical industries.

Features and Benefits:
1. High vibrating force with unique eccentric structure. Adopt advanced construction, making the vibrating force powerful.2. The beam and case of the screen are connected with high strength bolts without welding.3. Simple structure, easy to repair.4. Adopt tire coupling and soft connection makes operation smooth.5. High efficiency, easy maintenance, sturdy and durable.ZK Series linear Vibrating Screen:ZK series linear vibrating screen is based on the needs of China's production in the digestion and absorption the technology from abroad on the basis of summing up of our years of research experience in the design and use, combined with the national conditions of China developed a new series of vibrating screen.Through years of practice, that the series of machine has to deal with a large amount of technical parameters of a reasonable structural strength, high stiffness, serialization, generic, and a high degree of standardization, smooth and reliable operation, noise, maintenance overhaul to facilitate a series of advantages.Company Name: Henan Zhengzhou Mining MachineryOfficial Website: http://hnzkjq.en.made-in-china.com/ & http://hnzkjq.en.made-in-china.com/24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan ProvincePlease pay attention to the company's other products:Price of rotary kiln: http://hnzkjq.en.made-in-china.comRotary Kiln: http://hnzkjq.en.made-in-china.comPreheater: http://hnzkjq.en.made-in-china.comCement Mill: http://hnzkjq.en.made-in-china.comRotary Dryer: http://hnzkjq.en.made-in-china.comRaw Mill: http://hnzkjq.en.made-in-china.comBall Mill: http://hnzkjq.en.made-in-china.com

Model	Screen	deck	Vibration	Double-	Capacity	Motor	Overall
	layer	size	frequency	Amplitude	(m³/h)	power	dimensions
		(m³)	(r/min)	(mm)		(kw)	(L*W*H)(mm)
2YK1224	2	2.88	970	6-8	20-120	5.5	2637×2382×2027
YK1235	1	4.2	970	6-8	20-150	5.5	3710×2464×1450
2YK1235	2	4.2	970	6-8	20-150	7.5	3705×2393×2339
3YK1235	3	4.2	970	6-8	20-150	7.5	3621×2521×2830
4YK1235	4	4.2	970	6-8	20-150	11	3510×2521×2581
YK1545	1	6.75	970	6-8	20-150	11	4904×3044×2179
2YK2475	2	18	970	6-8	120-900	30	7812×4308×4642
3YK2475	3	18	970	6-8	120-900	37	7718×4393×5033
4YK2475	4	18	970	6-8	120-900	45	7718×4494×5361
YK3060	1	18	970	6-8	200-900	30	6207×4943×3108
2YK3060	2	18	970	6-8	200-900	37	6207×4943×3985
3YK3060	3	18	970	6-8	200-900	45	6207×4943×4485
4YK3060	4	18	970	6-8	200-900	45	6207×4943×4785
